POINT

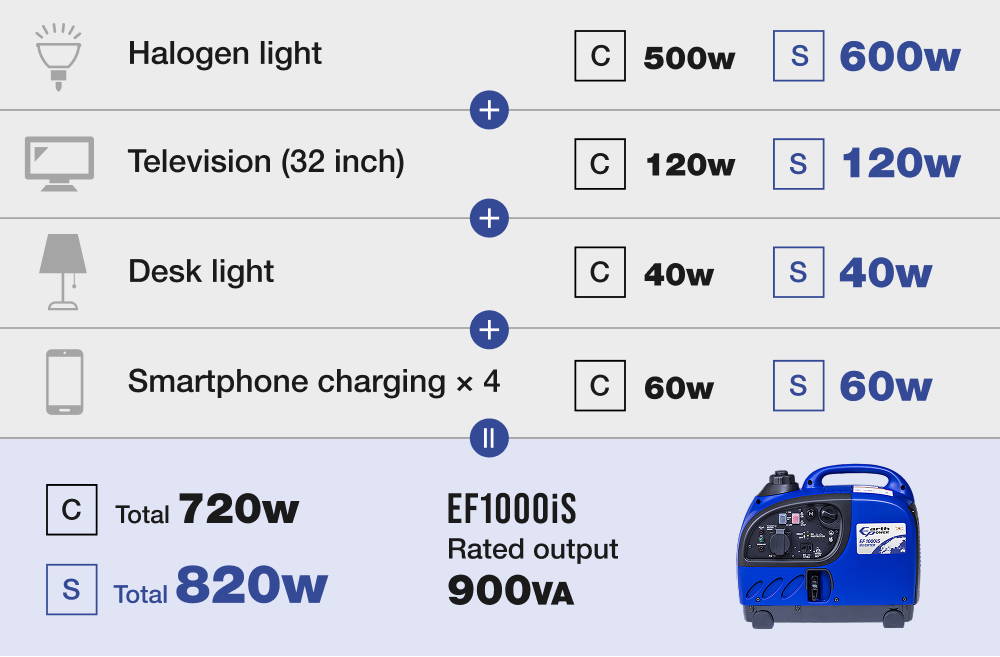

Use simulation
※ Depending on specifications, it may not be usable.※Symbol
＝Power Comsumption
＝Power Starting
- POINT01
-
Compact design, Light & Silent.
Light model portable with one hand !
12.7kg is realized by thorough light design.
- POINT02
-
Long time operation is achieved by economy control system.
Max 11.9 hours long operation is achieved by controlling the engine rpm based on the equipment power comsumption automatically. ※At 1/4 load
SPEC
| 120V-60Hz | 220V-50Hz | 220V-60Hz | 230V-50Hz | ||||
|---|---|---|---|---|---|---|---|
| Generator | Type | Multipolar rotating magnetic field | |||||
| Excitation system | Self-excitation（Magnet） | ||||||
| Voltage regulation system | Inverter | ||||||
| Power factor | 1.0 | 1.0 | 1.0 | 1.0 | |||
| AC | Rated frequency | Hz | 60 | 50 | 60 | 50 | |
| Rated output | kVA | 0.9 | 0.9 | 0.9 | 0.9 | ||
| Max output | kVA | 1.0 | 1.0 | 1.0 | 1.0 | ||
| Rated voltage | V | 120 | 220 | 220 | 230 | ||
| Rated current | A | 7.5 | 4.1 | 4.1 | 3.9 | ||
| DC | Rated voltage | V | 12 | 12 | 12 | 12 | |
| Rated current | A | 8.0 | 8.0 | 8.0 | 8.0 | ||
| Drive system | Direct connection | ||||||
| Overcurrent protection device | AC | Electronic type | |||||
| DC | DC protector | ||||||
| Engine | Engine name | MZ50 | |||||
| Engine type | Air-cooled 4-stroke gasoline engine (single cylinder upright OHV) | ||||||
| Displacement | cm³ | 50 | 50 | 50 | 50 | ||
| Bore x Stroke | mm | 41.0×38.0 | 41.0×38.0 | 41.0×38.0 | 41.0×38.0 | ||
| Fuel | Unleaded gasoline | ||||||
| Engine oil | API-SE class or more | ||||||
| Engine oil capacity | Max | L | 0.32 | 0.32 | 0.32 | 0.32 | |
| Min | L | (0.13) | (0.13) | (0.13) | (0.13) | ||
| Lubrication system | Forced spray | ||||||
| Air cleaner type | Semi-dry urethane foam | ||||||
| Ignition system | TCI | ||||||
| Spark plug & Plug gap | NGK CR4HSB 0.6～0.7 | ||||||
| Starting system | Recoil | ||||||
| Governer system | Electronic control | ||||||
| Cooling system | Forced air cooling | ||||||
| General | Dimension（L×W×H） | mm | 450×240×380 | 450×240×380 | 450×240×380 | 450×240×380 | |
| Dry weight | kg | 12.7 | 12.7 | 12.7 | 13 | ||
| Fuel tank capacity | Max | L | 2.5 | 2.5 | 2.5 | 2.5 | |
| Limited level | L | 2.5 | 2.5 | 2.5 | 2.5 | ||
| Continuous operation time | 1/4 load ～Rated load | hr | 11.9～4.1 | 11.9～4.1 | 11.9～4.1 | 11.9～4.1 | |
| Noise level | 3/4 load | dB/LWA | 86.0 | 86.0 | 86.0 | 86.0 | |
| 1/4 load (Economy control system : ON) | dB(A)/7m | 48.5 | 48.5 | 48.5 | 48.5 | ||
| Rated load (Economy control system : ON) | dB(A)/7m | 60.5 | 60.5 | 60.5 | 60.5 | ||
| AC plug |
 15A 125V |
 15A 250V |
 16A 250V |
 15A 250V |
|||
| DC plug |
 10A 24V |
10A 24V |
10A 24V |
 20A 125V |
|||
