POINT

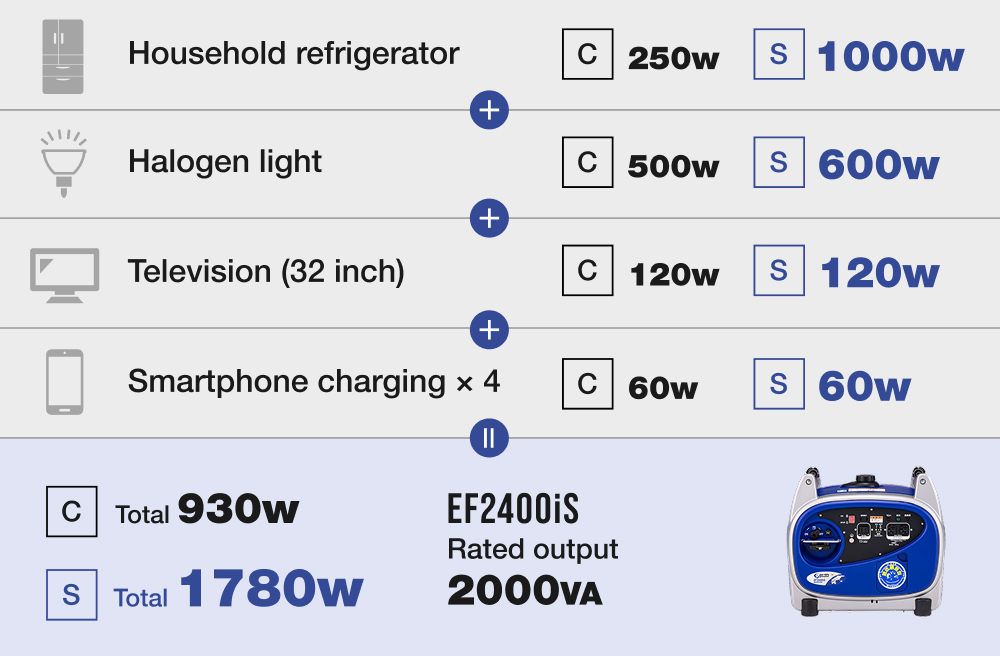

Use simulation
※ Depending on specifications, it may not be usable.※Symbol
＝Power Comsumption
＝Power Starting
- POINT01
-
Aluminum flame is adopted !
Light weight by flame of aluminum die cast.
- POINT02
-
High output by the parallel operation.
Rate output 3.8kVA is available by the parallel operation.
※A parallel code sold separately is necessary.
- POINT03
-
Storing of stack in 2 layers is available.
SPEC
| 120V-60Hz | 220V-60Hz | 230V-50Hz | ||||
|---|---|---|---|---|---|---|
| Generator | Type | Multipolar rotating magnetic field | ||||
| Excitation system | Self-excitation（Magnet） | |||||
| Voltage regulation system | Inverter | |||||
| Power factor | 1.0 | 1.0 | 1.0 | |||
| AC | Rated frequency | Hz | 60 | 60 | 50 | |
| Rated output | kVA | 2.0 | 2.0 | 2.0 | ||
| Max output | kVA | 2.4 | 2.4 | 2.4 | ||
| Rated voltage | V | 120 | 220 | 230 | ||
| Rated current | A | 16.7 | 9.1 | 8.7 | ||
| Rated output (Parallel) | kVA | ー | 3.5 | 3.8 | ||
| Max output (Parallel) | A | ー | 16.0 | 16.5 | ||
| DC | Rated voltage | V | 12 | 12 | 12 | |
| Rated current | A | 8.0 | 8.0 | 8.0 | ||
| Drive system | Direct connection | |||||
| Overcurrent protection device | AC | Electronic type | ||||
| DC | DC protector | |||||
| Engine | Engine name | MZ175 | ||||
| Engine type | Air-cooled 4-stroke gasoline engine (single cylinder 68°inclained OHV) | |||||
| Displacement | cm³ | 171 | 171 | 171 | ||
| Bore x Stroke | mm | 66.0×50.0 | 66.0×50.0 | 66.0×50.0 | ||
| Fuel | Unleaded gasoline | |||||
| Engine oil | API-SE class or more | |||||
| Engine oil capacity | Max | L | 0.60 | 0.60 | 0.60 | |
| Min | L | (0.30) | (0.30) | (0.30) | ||
| Lubrication system | Forced spray | |||||
| Air cleaner type | Semi-dry urethane foam | |||||
| Ignition system | TCI | |||||
| Spark plug & Plug gap | NGK BPR4ES 0.7～0.8 | |||||
| Starting system | Recoil | |||||
| Governer system | Electronic control | |||||
| Cooling system | Forced air cooling | |||||
| General | Dimension（L×W×H） | mm | 527x419x461 | 527x419x461 | 527x419x461 | |
| Dry weight | kg | 34 | 32 | 34 | ||
| Fuel tank capacity | Max | L | 6.0 | 6.0 | 6.0 | |
| Limited level | L | 6.0 | 6.0 | 6.0 | ||
| Continuous operation time | 1/4 load ～Rated load | hr | 8.6～5.0 | 8.6～5.0 | 8.6～5.0 | |
| Noise level | 3/4 load | dB/LWA | 87.5 | 87.5 | 87.5 | |
| 1/4 load (Economy control system : ON) | dB(A)/7m | 54.5 | 54.5 | 54.5 | ||
| Rated load (Economy control system : ON) | dB(A)/7m | 61.0 | 61.0 | 61.0 | ||
| AC plug |
 20A 125V |
 16A 250V |
 15A 250V |
|||
| DC plug |
 12A24V |
12A24V |
 12A 125V |
|||
