POINT

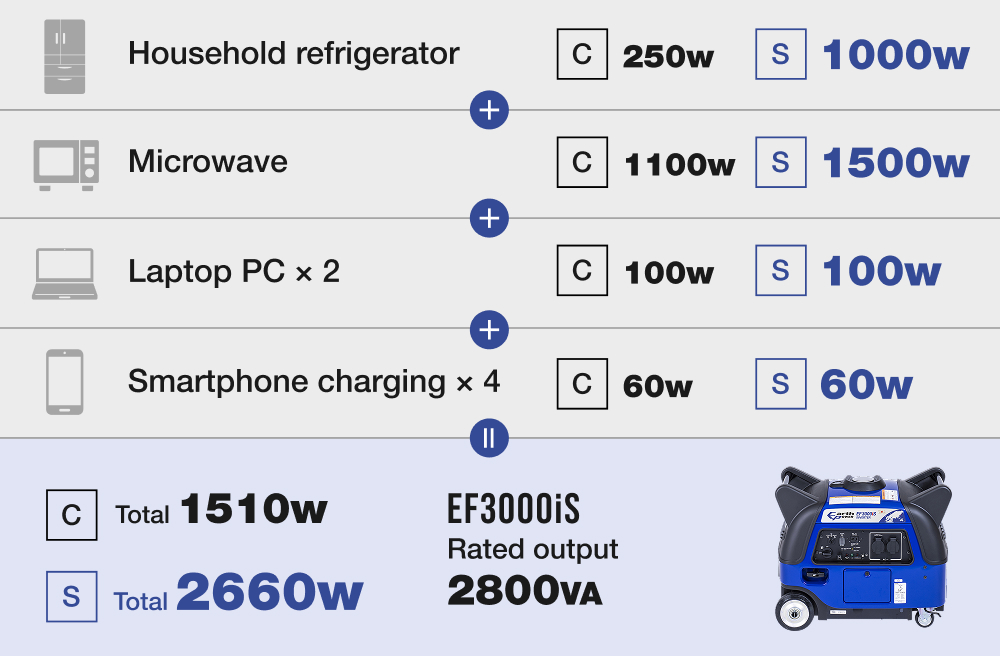

Use simulation
※ Depending on specifications, it may not be usable.※Symbol
＝Power Comsumption
＝Power Starting
- POINT01
-
High output & Silent design.
54.5dB(A) silent operation is realized by a designated muffler and the optimal layout of sound absorbing material. ※At 1/4 load
- POINT02
-
Long time operation is achieved by the economy control system.
Max 18.1 hours long operation is achieved by controlling the engine rpm based on the equipment power comsumption automatically. ※At 1/4 load
- POINT03
-
Casters are equipped for easy mobility.
SPEC
| 120V-60Hz | ||||
|---|---|---|---|---|
| Generator | Type | Multipolar rotating magnetic field | ||
| Excitation system | Self-excitation（Magnet） | |||
| Voltage regulation system | Inverter | |||
| Power factor | 1.0 | |||
| Rated frequency | Hz | 60 | ||
| Rated output | kVA | 2.8 | ||
| Max output | kVA | 3.5* | ||
| Rated voltage | V | 120 | ||
| Rated current | A | 23.3 | ||
| Drive system | Direct connection | |||
| Overcurrent protection device | Electronic type | |||
| Engine | Engine name | MZ175 | ||
| Engine type | Air-cooled 4-stroke gasoline engine (single cylinder 68°inclained OHV) | |||
| Displacement | cm³ | 171 | ||
| Bore x Stroke | mm | 66.0×50.0 | ||
| Fuel | Unleaded gasoline | |||
| Engine oil | API-SE class or more | |||
| Engine oil capacity | Max | L | 0.60 | |
| Min | L | (0.30) | ||
| Lubrication system | Forced spray | |||
| Air cleaner type | Filiter paper+Urethane foam | |||
| Ignition system | TCI | |||
| Spark plug & Plug gap | NGK BPR4ES 0.7～0.8 | |||
| Starting system | Recoil | |||
| Governer system | Electronic control | |||
| Cooling system | Forced air cooling | |||
| General | Dimension（L×W×H） | mm | 680x445x555 | |
| Dry weight | kg | 62 | ||
| Fuel tank capacity | Max | L | 13.0 | |
| Continuous operation time | 1/4 load ～Rated load | hr | 18.6～7.8 | |
| Noise level | 3/4 load | dB/LWA | 85.5 | |
| 1/4 load (Economy control system : ON) | dB(A)/7m | 54.5 | ||
| Rated load (Economy control system : ON) | dB(A)/7m | 61.0 | ||
| AC plug |
 20A 125V, 30A 125V |
|||
* With boost.
