POINT

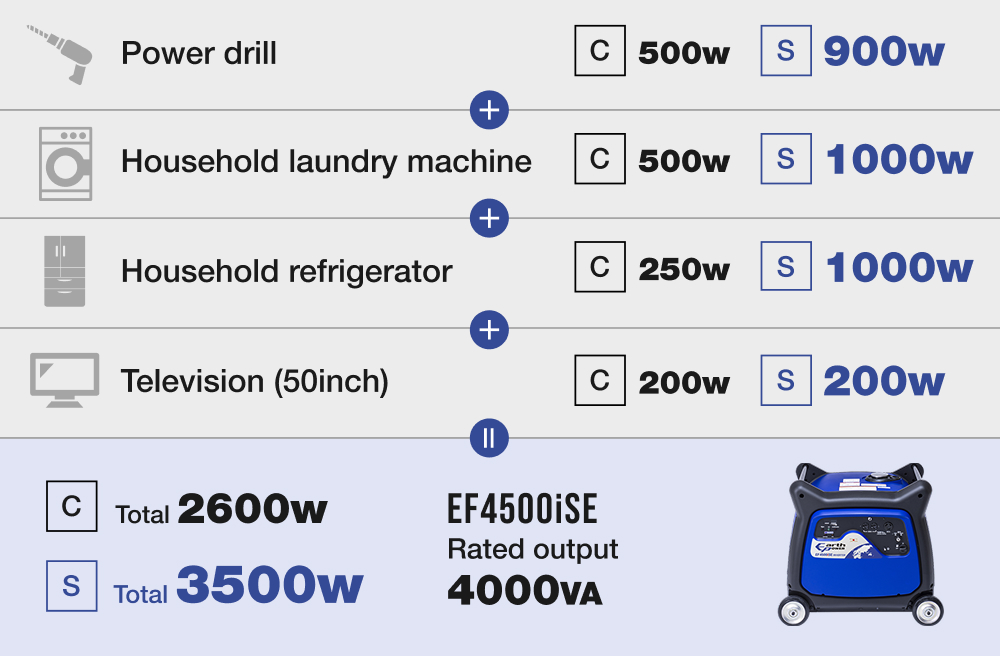

Use simulation
※ Depending on specifications, it may not be usable.※Symbol
＝Power Comsumption
＝Power Starting
- POINT01
-
Optimal for back-up in company and introduction to public facilities !
Enough output 4.0kVA is secured as back-up power source.
- POINT02
-
Twin bars and large casters are equipped !
Twin bars and large casters provide the excellent portability.
SPEC
| 120V-60Hz | ||||
|---|---|---|---|---|
| Generator | Type | Multipolar rotating magnetic field | ||
| Excitation system | Self-excitation（Magnet） | |||
| Voltage regulation system | Inverter | |||
| Power factor | 1.0 | |||
| Rated frequency | Hz | 60 | ||
| Rated output | kVA | 4.0 | ||
| Max output | kVA | 4.5 | ||
| Rated voltage | V | 120 | ||
| Rated current | A | 33.3 | ||
| Drive system | Direct connection | |||
| Overcurrent protection device | Electronic type+Mechanical(Bimetal) | |||
| Engine | Engine name | MZ360 | ||
| Engine type | Air-cooled 4-stroke gasoline engine (single cylinder 62°inclained OHV) | |||
| Displacement | cm³ | 357 | ||
| Bore x Stroke | mm | 85.0×63.0 | ||
| Fuel | Unleaded gasoline | |||
| Engine oil | API-SE class or more | |||
| Engine oil capacity | Max | L | 1.3 | |
| Min | L | (0.40) | ||
| Lubrication system | Forced spray | |||
| Air cleaner type | Semi-dry urethane foam | |||
| Ignition system | TCI | |||
| Spark plug & Plug gap | NGK BPR4ES 0.7～0.8 | |||
| Starting system | Electric | |||
| Governer system | Electronic control | |||
| Cooling system | Forced air cooling | |||
| General | Dimension（L×W×H） | mm | 780x616x692 | |
| Dry weight | kg | 95 | ||
| Fuel tank capacity | Max | L | 17.0 | |
| Limited level | L | 17.0 | ||
| Continuous operation time | 1/4 load ～Rated load | hr | 15.2～7.4 | |
| Noise level | 3/4 load | dB/LWA | 89.5 | |
| 1/4 load (Economy control system : ON) | dB(A)/7m | 58.0 | ||
| Rated load (Economy control system : ON) | dB(A)/7m | 60.0 | ||
| AC plug |
 20A 125V, 30A 125V |
|||
