POINT

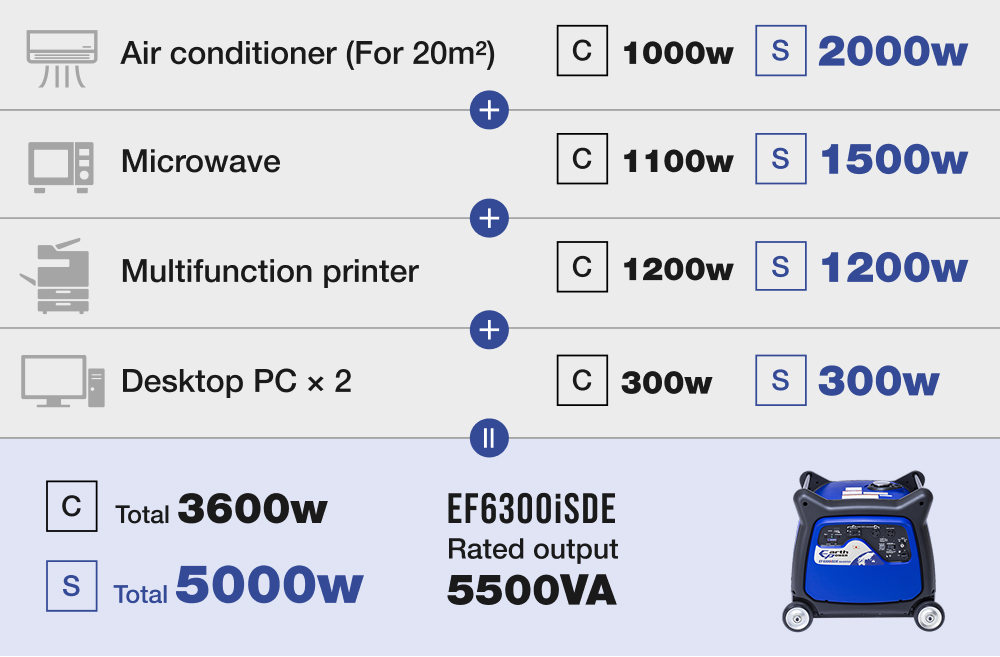

Use simulation
※ Depending on specifications, it may not be usable.※Symbol
＝Power Comsumption
＝Power Starting
- POINT01
-
Same time output of single phase 120V/240V !
In addition to 5.5kVA, same time output of single phase 120V/240V is available.
High practicality is secured as professional equipment and emergency power source.
SPEC
| 120V-60Hz | ||||
|---|---|---|---|---|
| Generator | Type | Multipolar rotating magnetic field | ||
| Excitation system | Self-excitation（Magnet） | |||
| Voltage regulation system | Inverter | |||
| Power factor | 1.0 | |||
| Rated frequency | Hz | 60 | ||
| Rated output | kVA | 5.5 | ||
| Max output | kVA | 6.3 | ||
| Rated voltage | V | 120/240 | ||
| Rated current | A | 45.8/22.9 | ||
| Drive system | Direct connection | |||
| Overcurrent protection device | Electronic type+Mechanical(Bimetal) | |||
| Engine | Engine name | MZ360 | ||
| Engine type | Air-cooled 4-stroke gasoline engine (single cylinder 62°inclained OHV) | |||
| Displacement | cm³ | 357 | ||
| Bore x Stroke | mm | 85.0 x 63.0 | ||
| Fuel | Unleaded gasoline | |||
| Engine oil | API-SE class or more | |||
| Engine oil capacity | Max | L | 1.3 | |
| Min | L | (0.40) | ||
| Lubrication system | Forced spray | |||
| Air cleaner type | Semi-dry urethane foam | |||
| Ignition system | TCI | |||
| Spark plug & Plug gap | NGK BPR4ES 0.7～0.8 | |||
| Starting system | Electric | |||
| Governer system | Electronic control | |||
| Cooling system | Forced air cooling | |||
| General | Dimension（L×W×H） | mm | 780x616x692 | |
| Dry weight | kg | 97(98)* | ||
| Fuel tank capacity | Max | L | 17.0 | |
| Limited level | L | 17.0 | ||
| Continuous operation time | 1/4 load ～Rated load | hr | 13.3～5.0 | |
| Noise level | 3/4 load | dB/LWA | 93.0 | |
| 1/4 load (Economy control system : ON) | dB(A)/7m | 58.0 | ||
| Rated load (Economy control system : ON) | dB(A)/7m | 64.0 | ||

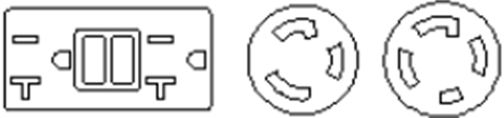

| AC plug |
 20A 125V, 30A 125V, 30A 250/125V |
|||
 (15A+15A) 125V, 30A 250V,30A 250/125V |
||||
*（）is for USA.
