SPEC
| Engine Type | Air-cooled 4-stroke, Hemi-head OHC, single cylinder | |
| Bore x Strokemm |
68 x 48 |
|
| Displacementcc |
174 |
|
| Rated OutputkW/rpm (PS/rpm) |
3.0/3400(4.1/3400) |
|
| Maximum OutputkW/rpm (PS/rpm) |
3.4/3600(4.6/3600) |
|
| Maximum TorqueN・m/rpm (kgf・m/rpm) |
10.0/2500(1.02/2500) |
|
| Rotation | Unitclockwise (from PTO shaft side) | |
| Ignition System | Transitorized (T.C.I.) | |
| Ignition Plug |
Torch E7RTC/NGK BPR7HS or equivalent |
|
| Carburetor | Float | |
| Luburication System | Mechanical Splash | |
| Luburication Oil | Engine Oil SE Class or Higher, SAE#30, at Cold Latitude SAE#20 | |
| Luburication Oil Capacityℓ |
0.5 |
|
| Air cleaner (element) | Polyurethane Type or Paper Type | |
| Governor System | All Speed Mechanical Governor | |
| PTO shaft type | Crankshaft as PTO (Vertical shaft) | |
| Fuel | Unleaded Automobile Gasoline | |
| Fuel Tank Macimum Capacityℓ |
1.2 |
|
| Starting System | Recoil Starter | |
| Dry weightkg |
11 or 14 |
|
| Dimensions | Lmm |
420 |
| Wmm |
370 |
|
| H(not including PTO shaft)mm |
275 |
|
* Values are only for reference.

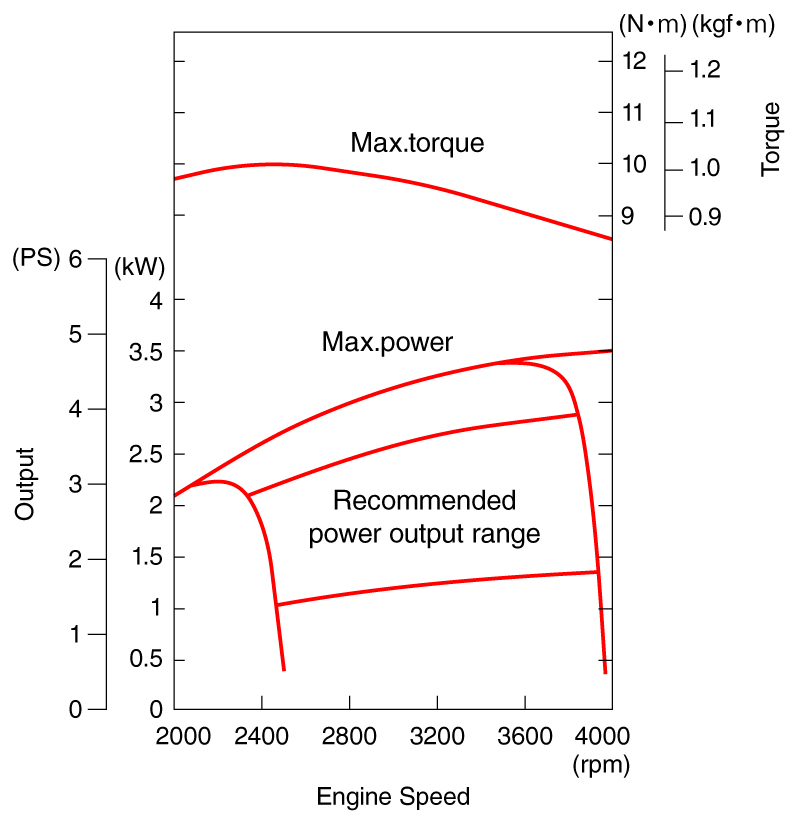

Performance Curve
