SPEC
Engine Type | Air-cooled 4-stroke, Hemi-head OHC, single cylinder | |
Bore x Strokemm |
68 x 52 |
|
Displacementcc |
189 |
|
Rated OutputkW/rpm (PS/rpm) |
3.5/3400 (4.8/3400) |
|
Maximum OutputkW/rpm (PS/rpm) |
3.72/3600 (5.05/3600) |
|
Maximum TorqueN・m/rpm (kgf・m/rpm) |
11.2/2500 (1.14/2500) |
|
Rotation | Unitclockwise (from PTO shaft side) | |
Ignition System | Transitorized (T.C.I.) | |
Ignition Plug |
Torch E7RTC/NGK BPR7HS or equivalent |
|
Carburetor | Float | |
Luburication System | Mechanical Splash | |
Luburication Oil | Engine Oil SE Class or Higher, SAE#30, at Cold Latitude SAE#20 | |
Luburication Oil Capacityℓ |
0.6 |
|
Air cleaner (element) | Polyurethane Type or Paper Type | |
Governor System | All Speed Mechanical Governor | |
PTO shaft type | Crankshaft as PTO (Vertical shaft) | |
Fuel | Unleaded Automobile Gasoline | |
Fuel Tank Macimum Capacityℓ |
1.2 |
|
Starting System | Recoil Starter | |
Dry weightkg |
11.5 or 14.5 |
|
Dimensions | Lmm |
425 |
Wmm |
360 |
|
H(not including PTO shaft)mm |
290 |

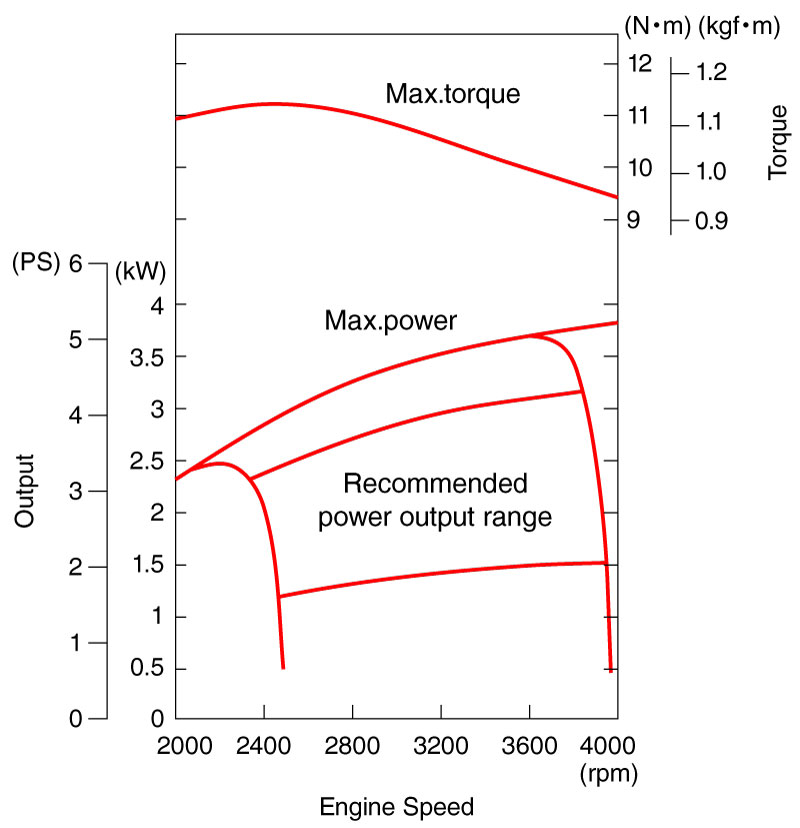

Performance Curve
