SPEC
Type | Air cooling 4-cycle horizontal-shaft OHV gasoline engine | |
Cylinder-Bore strokemm |
1-66x50 |
|
Displacement㎤(cc) |
171 |
|
Rated power (Net) | P typekW/rpm(HP/rpm) |
3.0(4.0)/3600 |
L typekW/rpm(HP/rpm) |
3.0(4.0)/1800 |
|
Maximum power (Net) | P typekW/rpm(HP/rpm) |
3.5(4.7)/3600 |
L typekW/rpm(HP/rpm) |
3.5(4.7)/1800 |
|
Maximum torque (Net) | P typeN·m/rpm(kgf·m/rpm) |
10.5(1.0)/2400 |
L typeN·m/rpm(kgf·m/rpm) |
21.1(2.0)/1200 |
|
Rotation direction | Counter clockwise (viewed from PTO shaft) | |
Sparking system | T.C.I. | |
Spark plug |
NGK BPR4ES |
|
Lubrication system | Mechanical splashing | |
Lubrication oil | API-SE grade or above | |
Lubrication oil capacitydm³(L) |
0.6 |
|
Air cleaner | Semi-wet polyurethane element | |
Governor method | Centrifugal governor | |
Reduction system | P type:Direct connection L type:1/2 External reduction type |
|
Fuel | Unleaded gasoline | |
Fuel tank capacitydm³(L) |
4.5 |
|
Starting method |
Recoil starter |
|
Dry weight* | P typekg |
16 |
L typekg |
19.5 |
|
Dimensions (L x W x H)* | P typemm |
315 x 352 x 372 |
L typemm |
353 x 352 x 372 |
* Values are only for reference.

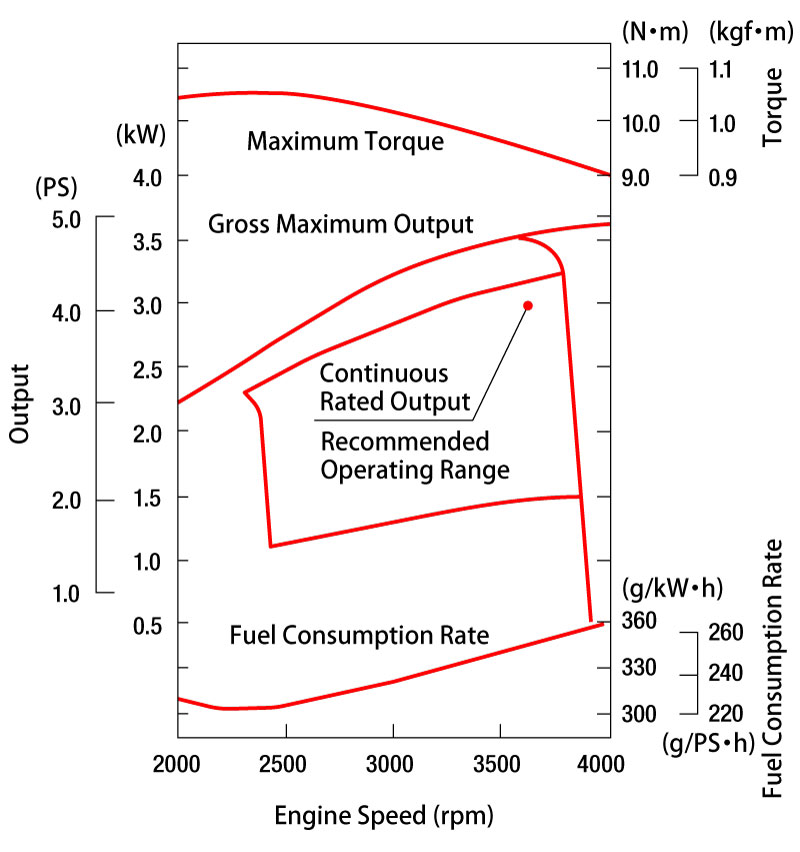

Performance Curve

DRAWING
Type P
Type L
