SPEC
| Type | Air cooling 4-cycle horizontal-shaft OHV gasoline engine | |
| Cylinder-Bore strokemm |
1-70x50 |
|
| Displacement㎤(cc) |
192 |
|
| Rated power (Net) | P typekW/rpm(HP/rpm) |
3.5(4.7)/3600 |
| L typekW/rpm(HP/rpm) |
3.5(4.7)/1800 |
|
| Maximum power (Net) | P typekW/rpm(HP/rpm) |
4.5(5.9)/3600 |
| L typekW/rpm(HP/rpm) |
4.5(5.9)/1800 |
|
| Maximum torque (Net) | P typeN·m/rpm(kgf·m/rpm) |
12.9(1.3)/2400 |
| L typeN·m/rpm(kgf·m/rpm) |
25.8(2.6)/1200 |
|
| Rotation direction | Counter clockwise (viewed from PTO shaft) | |
| Sparking system | T.C.I. | |
| Spark plug |
NGK BPR4ES |
|
| Lubrication system | Mechanical splashing | |
| Lubrication oil | API-SE grade or above | |
| Lubrication oil capacitydm³(L) |
0.6 |
|
| Air cleaner | Semi-wet polyurethane element | |
| Governor method | Centrifugal governor | |
| Reduction system | P type：Direct connection L type：1/2 External reduction type |
|
| Fuel | Unleaded gasoline | |
| Fuel tank capacitydm³(L) |
4.5 |
|
| Starting method |
Recoil starter |
|
| Dry weight* | P typekg |
17 |
| L typekg |
18.7 |
|
| Dimensions (L x W x H)* | P typemm |
331 x 363 x 372 |
| L typemm |
369 x 363 x 372 |
|
* Values are only for reference.

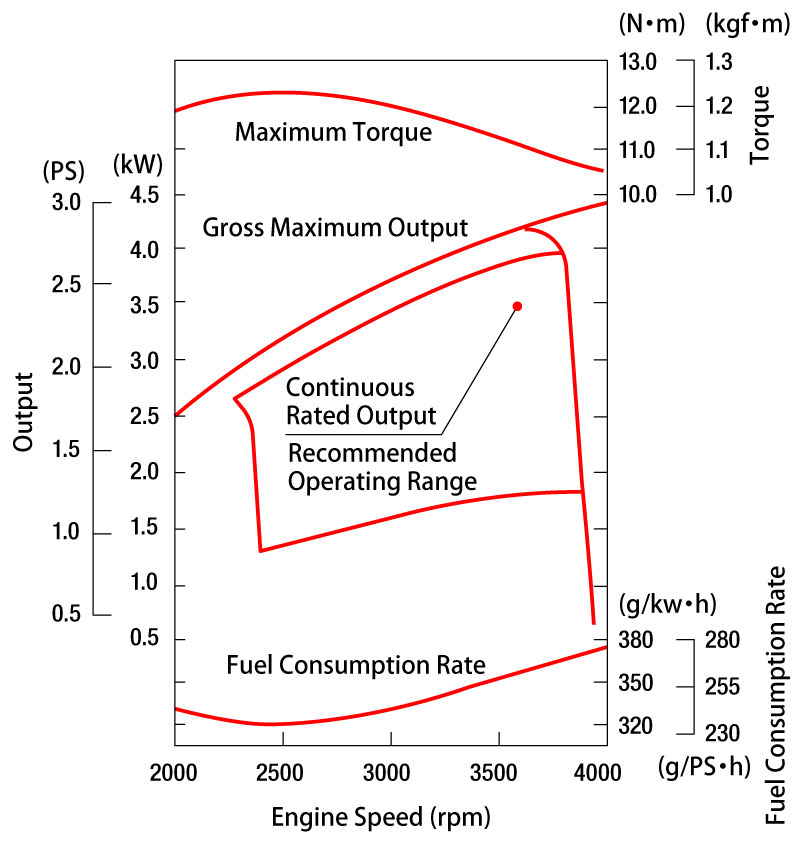

Performance Curve
DRAWING
Type P
Type L
MZ SERIES
MZ175
| Maximum power (Net) | 3.5kW(4.7HP) |
|---|---|
| Displacement | 171㎤(cc) |
MZ250
| Maximum power (Net) | 5.4kW(7.2HP) |
|---|---|
| Displacement | 253㎤(cc) |
MZ300
| Maximum power (Net) | 7.0kW(9.4HP) |
|---|---|
| Displacement | 296㎤(cc) |
MZ360
| Maximum power (Net) | 7.6kW(10.3HP) |
|---|---|
| Displacement | 357㎤(cc) |
MZ400
| Maximum power (Net) | 9.4kW(12.6HP) |
|---|---|
| Displacement | 402㎤(cc) |
