SPEC
| Type | Air cooling 4-cycle horizontal-shaft OHV gasoline engine | |
| Cylinder-Bore strokemm |
1-80x59 |
|
| Displacement㎤(cc) |
296 |
Rated power (Net) | P typekW/rpm(HP/rpm) |
5.8(7.8)/3600 |
| L typekW/rpm(HP/rpm) |
5.8(7.8)/1800 |
|
| Maximum power (Net) | P typekW/rpm(HP/rpm) |
7.0(9.4)/3600 |
| L typekW/rpm(HP/rpm) |
7.0(9.4)/1800 |
|
| Maximum torque (Net) | P typeN·m/rpm(kgf·m/rpm) |
20.3(2.0)/2400 |
| L typeN·m/rpm(kgf·m/rpm) |
40.6(4.1)/1200 |
|
| Rotation direction | Counter clockwise (viewed from PTO shaft) | |
| Sparking system | T.C.I. | |
| Spark plug |
NGK BPR4ES |
|
| Lubrication system | Mechanical splashing | |
| Lubrication oil | API-SE grade or above | |
| Lubrication oil capacitydm³(L) |
1.0 |
|
| Air cleaner | Semi-wet polyurethane element | |
| Governor method | Centrifugal governor | |
| Reduction system | P type：Direct connection L type：1/2 External reduction type |
|
| Fuel | Unleaded gasoline | |
| Fuel tank capacitydm³(L) |
5.8 |
|
| Starting method |
Recoil starter |
|
| Dry weight* | P typekg |
26 |
| L typekg |
29 |
|
| Dimensions (L x W x H)* | P typemm |
362 x 426 x 429 |
| L typemm |
417 x 426 x 429 |
|
* Values are only for reference.

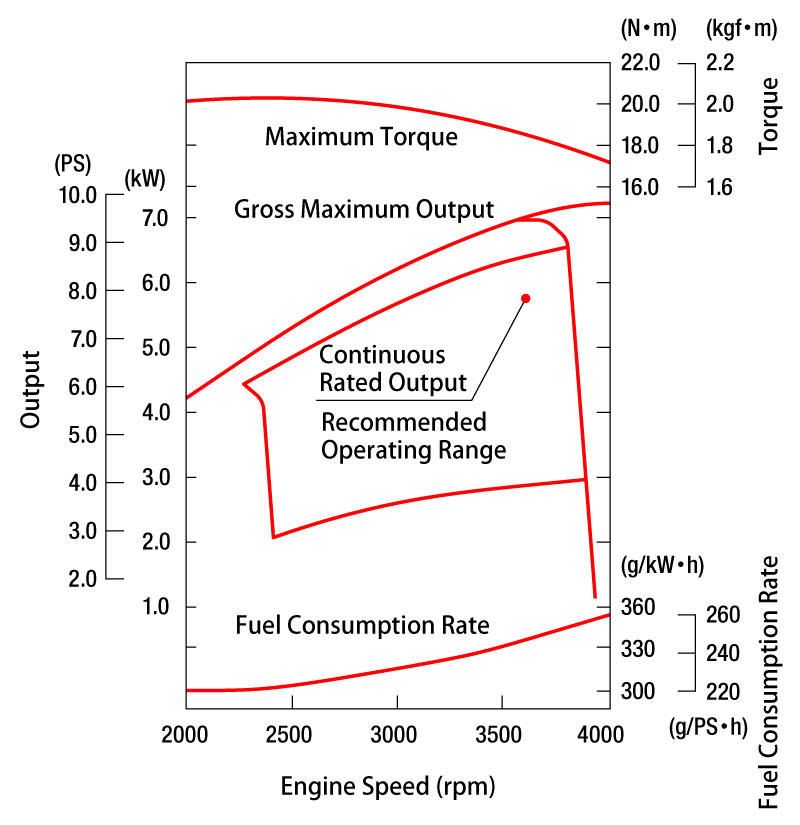

Performance Curve
DRAWING
Type P
Type L
