SPEC
| Type | Air cooling 4-cycle horizontal-shaft OHV gasoline engine | |
| Cylinder-Bore strokemm |
1-85x71 |
|
| Displacement㎤(cc) |
402 |
|
| Rated power (Net) | P typekW/rpm(HP/rpm) |
7.8(10.5)/3600 |
| Maximum power (Net) | P typekW/rpm(HP/rpm) |
9.4(12.6)/3600 |
| Maximum torque (Net) | P typeN·m/rpm(kgf·m/rpm) |
28.7/(2.9)2400 |
| Rotation direction | Counter clockwise (viewed from PTO shaft) | |
| Sparking system | T.C.I. | |
| Spark plug |
NGK BPR4ES |
|
| Lubrication system | Mechanical splashing | |
| Lubrication oil | API-SE grade or above | |
| Lubrication oil capacitydm³(L) |
1.1 |
|
| Air cleaner | Semi-wet polyurethane element | |
| Governor method | Centrifugal governor | |
| Reduction system | P type：Direct connection | |
| Fuel | Unleaded gasoline | |
| Fuel tank capacitydm³(L) |
6.1 |
|
| Starting method |
Recoil starter (Electric starter : option) |
|
| Dry weight* | P typekg |
33 |
| Dimensions (L x W x H)* | P typemm |
456 x 476 x 306 |
* Values are only for reference.

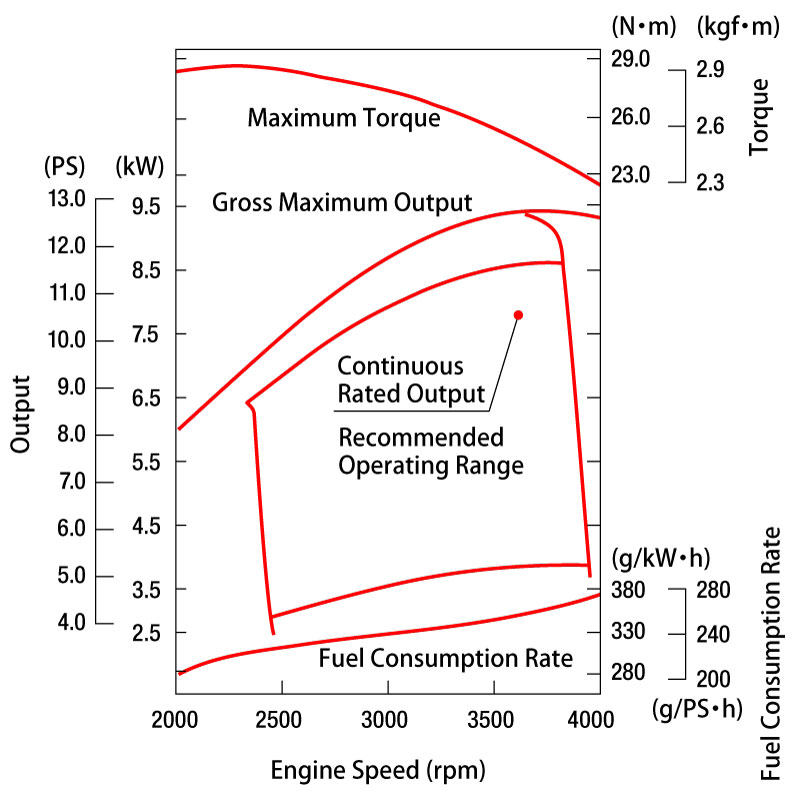

Performance Curve
DRAWING
Type P
MZ SERIES
MZ175
| Maximum power (Net) | 3.5kW(4.7HP) |
|---|---|
| Displacement | 171㎤(cc) |
MZ200
| Maximum power (Net) | 4.5kW(5.9HP) |
|---|---|
| Displacement | 192㎤(cc) |
MZ250
| Maximum power (Net) | 5.4kW(7.2HP) |
|---|---|
| Displacement | 253㎤(cc) |
MZ300
| Maximum power (Net) | 7.0kW(9.4HP) |
|---|---|
| Displacement | 296㎤(cc) |
MZ360
| Maximum power (Net) | 7.6kW(10.3HP) |
|---|---|
| Displacement | 357㎤(cc) |
